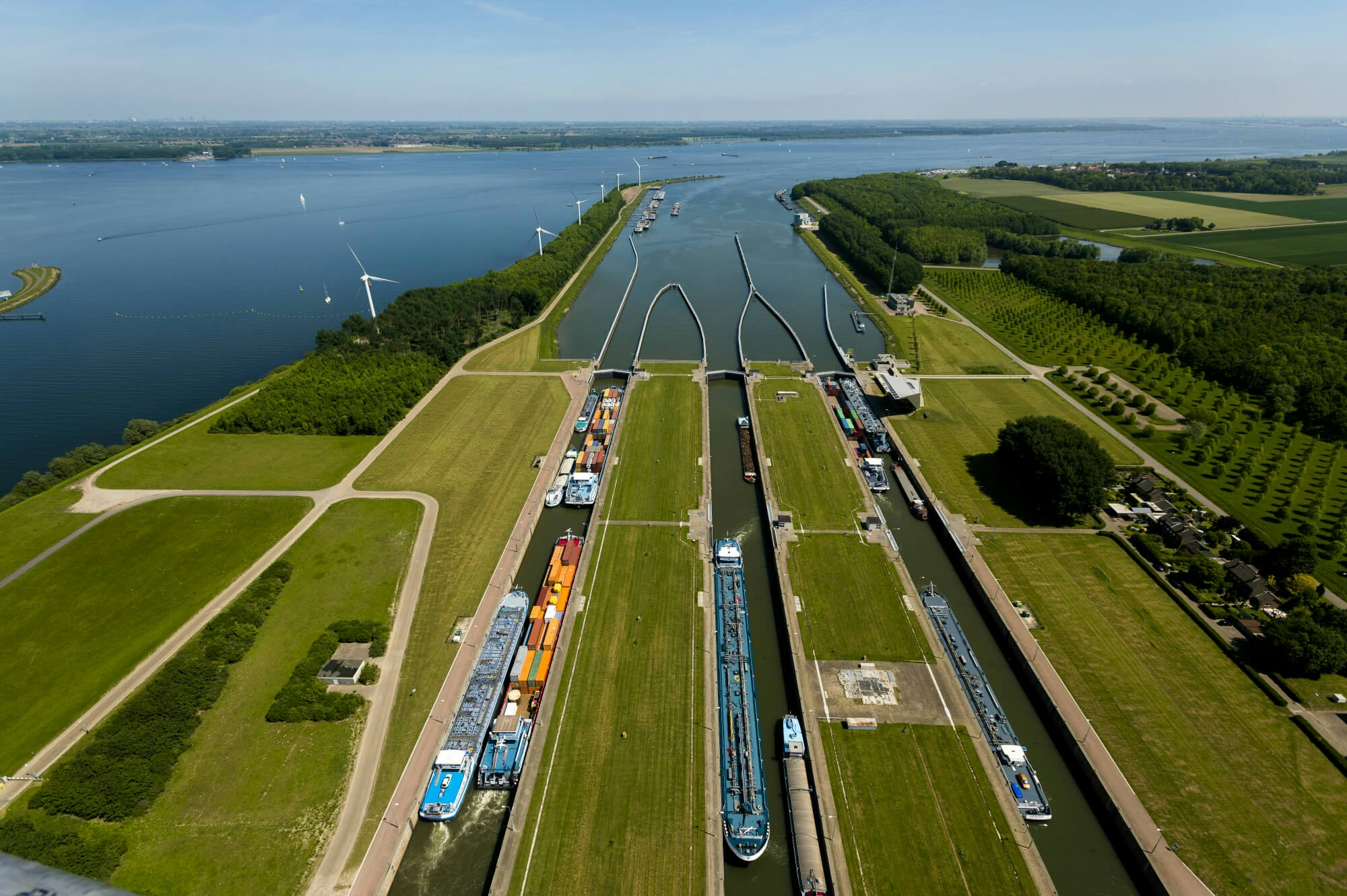

Lock in the real-world graph#
In this notebook, we set up a basic simulation where two vessels cross a lock complex in a real-world graph. We take the eastern lock chamber of the Volkerak sluices (rightern most lock chamber in the picture below).
0. Import#
0.1 Import libraries#
# package(s) used for creating and geo-locating the graph
import networkx as nx
import pyproj
from shapely.geometry import Point, LineString, Polygon
from shapely.ops import transform
# package to navigate through files and folders
import os
# package(s) related to the simulation (creating the vessel, running the simulation)
import datetime
import simpy
import opentnsim
import opentnsim.fis as fis
from opentnsim.core.logutils import logbook2eventtable
from opentnsim.core.plotutils import generate_vessel_gantt_chart
# import of modules important for locking
from opentnsim.lock import lock as lock_module
from opentnsim.vessel_traffic_service import vessel_traffic_service as vessel_traffic_service_module
# package(s) needed for inspecting the output
import pandas as pd
import matplotlib.pyplot as plt
# package(s) needed for inspecting the output
import pandas as pd
import geopandas as gpd
import numpy as np
# plot libraries
import folium
print("This notebook is executed with OpenTNSim version {}".format(opentnsim.__version__))
This notebook is executed with OpenTNSim version 1.3.7
%load_ext autoreload
%autoreload 2
0.2. Functions to be included in the utilities#
def find_closest_edge_to_point(graph, point):
distance_to_edge = {}
point_transformed = point #flip_coordinates(point)
for edge in graph.edges(data = True):
edge_name = (edge[0],edge[1])
edge_info = edge[2]
edge_geometry = edge_info["geometry"]
distance_to_edge[edge_name] = point_transformed.distance(edge_geometry)
closest_edge = list(distance_to_edge.keys())[np.argmin(list(distance_to_edge.values()))]
return closest_edge
def get_closest_node_to_point(graph, point):
closest_edge = find_closest_edge_to_point(graph, point)
distance_to_node = {}
point_transformed = point #flip_coordinates(point)
for node in closest_edge:
node_geometry = graph.nodes[node]["geometry"]
distance_to_node[node] = point_transformed.distance(node_geometry)
closest_node = list(distance_to_node.keys())[np.argmin(list(distance_to_node.values()))]
return closest_node
def get_closest_location_on_edge_to_point(graph,edge,point):
edge_geometry = FG.edges[edge]["geometry"]
point_on_edge = edge_geometry.interpolate(edge_geometry.project(point))
return point_on_edge
def calculate_distance_along_geometry_to_nodes_of_edge(graph, edge, point):
edge_geometry = graph.edges[edge]["geometry"]
return distance_to_start_node, distance_to_end_node
def find_nodes_in_a_polygon(polygon):
nodes = []
for node in FG.nodes(data = True):
node_info = node[1]
node_geometry = node_info["geometry"]
if lock_polygon.intersects(node_geometry):
nodes.append(node[0])
return nodes
def find_edges_in_a_polygon(polygon):
edges = []
for edge in FG.edges(data = True):
start_node = edge[0]
end_node = edge[1]
edge_info = edge[2]
edge_geometry = edge_info["geometry"]
if lock_polygon.intersects(edge_geometry):
edges.append((start_node,end_node))
return edges
def calculate_length_of_splitted_edge_geometries(graph, edge, edge_geometries):
edge_geometry_lengths = [edge_geometry.length for edge_geometry in edge_geometries]
sum_edge_length = np.sum(edge_geometry_lengths)
fractive_edge_parts_lengths = edge_geometry_lengths/sum_edge_length
edge_parts_lenghts_m = fractive_edge_parts_lengths*graph.edges[edge]["length_m"]
return edge_parts_lenghts_m
def find_edges_based_on_shared_node(graph, node):
edges = []
for edge in graph.edges:
if node in edge:
edges.append(edge)
return edges
def compare_two_edge_info(edge_A,edge_B):
edge_info_A = FG.edges[edge_A]
edge_info_B = FG.edges[edge_B]
shared_items = {k: edge_info_A[k] for k in edge_info_A if k in edge_info_B and str(edge_info_A[k]) == str(edge_info_B[k])}
missing_items_A = edge_info_A.keys() - shared_items.keys()
missing_items_B = edge_info_B.keys() - shared_items.keys()
return shared_items, missing_items_A, missing_items_B
import pyproj
from shapely.ops import transform
def transform_geometry(geometry, epsg_in = "EPSG:4326", epsg_out = "EPSG:8857"):
#EPSG:8857 is equal earth projection
crs_in = pyproj.CRS(epsg_in)
crs_out = pyproj.CRS(epsg_out)
crs_in_to_crs_out = pyproj.transformer.Transformer.from_crs(crs_in, crs_out, always_xy=True).transform
geometry_transformed = transform(crs_in_to_crs_out,geometry)
return geometry_transformed
def remove_node_from_network(graph, node):
graph.remove_node(node)
return
import warnings
from shapely.ops import linemerge
def merge_two_consecutive_edges_based_on_shared_node(graph, node):
if node not in FG.nodes:
warnings.warn(f"Node ({node}) does not exist in graph, merging aborted.")
return
edges = find_edges_based_on_shared_node(graph, node)
number_of_edges = len(edges)
if number_of_edges != 2:
if number_of_edges > 2:
warnings.warn(f"Node ({node}) has multiple ({number_of_edges}) edges, merging aborted.")
else:
warnings.warn(f"Node ({node}) has only one edge, merging aborted.")
return
edge_A, edge_B = edges
start_junction_id = list(set(edge_A)-set(edge_B))[0]
end_junction_id = list(set(edge_B)-set(edge_A))[0]
edge_info_A = FG.edges[edge_A]
edge_info_B = FG.edges[edge_B]
edge_geometry_A = FG.edges[edge_A]["geometry"]
edge_geometry_B = FG.edges[edge_B]["geometry"]
new_edge_geometry = linemerge([edge_geometry_A,edge_geometry_B])
shared_items, missing_items_A, missing_items_B = compare_two_edge_info(edge_A,edge_B)
new_edge_data = shared_items
new_edge_data['StartJunctionId'] = start_junction_id
new_edge_data['EndJunctionId'] = end_junction_id
new_edge_data['GeoType'] = np.nan
new_edge_data['Wkt'] = str(new_edge_geometry)
new_edge_data['geometry'] = new_edge_geometry
new_edge_data['length'] = edge_info_A['length'] + edge_info_B['length']
new_edge_data['length_m'] = edge_info_A['length_m'] + edge_info_B['length_m']
if (start_junction_id,end_junction_id) in FG.edges:
warnings.warn(f"Edge ({start_junction_id},{end_junction_id}) is already part of the network, merging aborted.")
return
graph.add_edge(start_junction_id, end_junction_id, **new_edge_data)
remove_node_from_network(graph,node)
return
def create_real_world_graph(graph, lat_start = 52.24, lon_start = 5.75, zoom_start = 6):
# Create a map centered between the two points
m = folium.Map(location=[lat_start, lon_start], zoom_start = zoom_start, tiles="cartodb positron")
for edge in graph.edges(data = True):
points_x = list(edge[2]["geometry"].coords.xy[0])
points_y = list(edge[2]["geometry"].coords.xy[1])
line = []
for i, _ in enumerate(points_x):
line.append((points_y[i], points_x[i]))
folium.PolyLine(line, color = "darkgrey", weight = 3, popup = edge[2]["Name"]).add_to(m)
for node in graph.nodes(data = True):
point = list(node[1]["geometry"].coords.xy)
folium.CircleMarker(location=[point[1][0],point[0][0]], color='grey',fill_color = "grey", fill=True, radius = 2, popup = node[0]).add_to(m)
return m
from scipy.spatial import ConvexHull
from scipy.ndimage import rotate
import math
def get_bounding_rectangle(geometry):
"""
Find the smallest bounding rectangle for a set of points.
Returns a set of points representing the corners of the bounding box.
Parameters
----------
geometry : shapely.geometry.Poylgon
polygon of the object
Returns
-------
rval : shapely.geometry.Poylgon
polygon of the bounding rectangle
"""
geometry_coordinates = geometry.exterior.coords
points = np.array(geometry_coordinates)
pi2 = np.pi/2.
# get the convex hull for the points
hull_points = points[ConvexHull(points).vertices]
# calculate edge angles
edges = np.zeros((len(hull_points)-1, 2))
edges = hull_points[1:] - hull_points[:-1]
angles = np.zeros((len(edges)))
angles = np.arctan2(edges[:, 1], edges[:, 0])
angles = np.abs(np.mod(angles, pi2))
angles = np.unique(angles)
# find rotation matrices
rotations = np.vstack([
np.cos(angles),
np.cos(angles-pi2),
np.cos(angles+pi2),
np.cos(angles)]).T
rotations = rotations.reshape((-1, 2, 2))
# apply rotations to the hull
rot_points = np.dot(rotations, hull_points.T)
# find the bounding points
min_x = np.nanmin(rot_points[:, 0], axis=1)
max_x = np.nanmax(rot_points[:, 0], axis=1)
min_y = np.nanmin(rot_points[:, 1], axis=1)
max_y = np.nanmax(rot_points[:, 1], axis=1)
# find the box with the best area
areas = (max_x - min_x) * (max_y - min_y)
best_idx = np.argmin(areas)
# return the best box
x1 = max_x[best_idx]
x2 = min_x[best_idx]
y1 = max_y[best_idx]
y2 = min_y[best_idx]
r = rotations[best_idx]
rval = np.zeros((4, 2))
rval[0] = np.dot([x1, y2], r)
rval[1] = np.dot([x2, y2], r)
rval[2] = np.dot([x2, y1], r)
rval[3] = np.dot([x1, y1], r)
bounding_rectangle = Polygon([Point(y,x) for x,y in rval])
return bounding_rectangle
def determine_object_dimensions_and_alignment(geometry):
exterior_coords = geometry.exterior.coords
side_lengths = []
for i in range(len(exterior_coords) - 1):
p1 = exterior_coords[i]
p2 = exterior_coords[i+1]
length = ((p1[0] - p2[0])**2 + (p1[1] - p2[1])**2)**0.5
side_lengths.append(length)
length = np.max(side_lengths)
width = np.min(side_lengths)
length_index = int(np.argmax(side_lengths))
p1 = exterior_coords[length_index]
p2 = exterior_coords[length_index + 1]
# Calculate angle in radians
angle_rad = math.atan2(p2[1] - p1[1], p2[0] - p1[0])
# Convert to degrees
angle_deg = math.degrees(angle_rad)
return length, width, angle_deg
def flip_coordinates(geometry):
flipped_geometry = transform(lambda x, y: (y, x), geometry)
return flipped_geometry
from shapely import reverse
def reverse_geometry(geometry):
reversed_geometry = reverse(geometry)
return reversed_geometry
def align_network_geometries_with_edge_directions(graph):
for edge in graph.edges:
start_node = edge[0]
end_node = edge[1]
edge = (start_node, end_node)
start_node_geometry = graph.nodes[start_node]["geometry"]
end_node_geometry = graph.nodes[end_node]["geometry"]
edge_geometry = graph.edges[edge]["geometry"]
edge_geometry_coordinates_x,edge_geometry_coordinates_y = edge_geometry.coords.xy
starting_point_edge_geometry = Point(edge_geometry_coordinates_x[0],edge_geometry_coordinates_y[0])
distance_starting_point_edge_geometry_with_start_node_geometry = starting_point_edge_geometry.distance(start_node_geometry)
distance_starting_point_edge_geometry_with_end_node_geometry = starting_point_edge_geometry.distance(end_node_geometry)
if distance_starting_point_edge_geometry_with_start_node_geometry > distance_starting_point_edge_geometry_with_end_node_geometry:
reversed_edge_geometry = reverse_geometry(edge_geometry)
graph.edges[edge]["geometry"] = reversed_edge_geometry
graph.edges[edge]["Wkt"] = str(reversed_edge_geometry)
return
def find_closest_node_of_edge_to_target_edge(graph, edge, target_edge):
if edge == target_edge or edge == (target_edge[1], target_edge[0]):
warnings.warn(f"Edges are the same, start_node of target_edge is returned.")
return target_edge[0]
routes = {}
for target_node in target_edge:
for node in edge:
length_route = len(nx.dijkstra_path(graph,node,target_node))
if waiting_area_node not in routes.keys() or length_route < routes[waiting_area_node]:
routes[node] = len(nx.dijkstra_path(graph,node,target_node))
closest_node_to_lock = min(routes, key=routes.get)
return closest_node_to_lock
def find_closest_node_of_target_edge_to_geometry(graph, geometry, target_edge):
distances_to_node = {}
for node in target_edge:
node_geometry = graph.nodes[node]["geometry"]
distances_to_node[node] = node_geometry.distance(geometry)
closest_node_to_geometry = min(distances_to_node, key=distances_to_node.get)
return closest_node_to_geometry
from shapely.ops import split
def split_edge_based_on_point_along_edge(graph, edge, point):
edge_geometry = graph.edges[edge]["geometry"]
split_point = point.buffer(1e-9)
if not edge_geometry.intersects(split_point):
warnings.warn(f"Point is not located along the edge, returned the edge and None.")
return edge_geometry, None
splitted_edge_geometries = split(edge_geometry,split_point).geoms
first_edge_geometry = splitted_edge_geometries[0]
second_edge_geometry = splitted_edge_geometries[2]
return first_edge_geometry, second_edge_geometry
def split_edge_based_on_geometry_along_edge(graph, edge, geometry):
edge_geometry = graph.edges[edge]["geometry"]
if not edge_geometry.intersects(geometry):
warnings.warn(f"Geometry is not located along the edge, returned the edge, geometry, and None.")
return edge_geometry, geometry, None
splitted_edge_geometries = split(edge_geometry,geometry).geoms
first_edge_geometry = splitted_edge_geometries[0]
edge_in_geometry = splitted_edge_geometries[1]
second_edge_geometry = splitted_edge_geometries[2]
return first_edge_geometry, edge_in_geometry, second_edge_geometry
def determine_the_distances_from_doors_to_edge_nodes(graph, lock_edge_geometries, lock_edge_lengths):
distance_from_start_node_to_lock_doors_A = None
distance_from_end_node_to_lock_doors_B = None
for geometry_index, geometry in enumerate(lock_edge_geometries):
distances_to_node = {}
for lock_node in lock_edge:
distances_to_node[lock_node] = geometry.distance(graph.nodes[lock_node]["geometry"])
closest_node = min(distances_to_node, key=distances_to_node.get)
if distances_to_node[closest_node] > 0.0001:
geometry_index_name = 'First'
if geometry_index:
geometry_index_name = 'Second'
warnings.warn(f"{geometry_index_name} lock edge geometry does not touch any node")
lock_node_index = list(distances_to_node.keys()).index(closest_node)
if not lock_node_index:
distance_from_start_node_to_lock_doors_A = lock_edge_lengths[geometry_index]
else:
distance_from_end_node_to_lock_doors_B = lock_edge_lengths[geometry_index]
if distance_from_start_node_to_lock_doors_A is None:
warnings.warn(f"Distance_from_start_node_to_lock_doors_A not found")
if distance_from_end_node_to_lock_doors_B is None:
warnings.warn(f"Distance_from_end_node_to_lock_doors_B not found")
return distance_from_start_node_to_lock_doors_A, distance_from_end_node_to_lock_doors_B
1. Define object classes#
# make your preferred Vessel class out of available mix-ins.
Vessel = type(
"Vessel",
(
lock_module.PassesLockComplex, # allows to interact with a lock
opentnsim.core.Identifiable, # allows to give the object a name and a random ID,
opentnsim.core.Movable, # allows the object to move, with a fixed speed, while logging this activity
opentnsim.core.VesselProperties, # allows vessel to have dimensions, namely a length (L), width (B), and draught (T)
opentnsim.core.ExtraMetadata, # allow additional information, such as an arrival time (required for passing a lock)
opentnsim.mixins.HasMultiDiGraph, # allow to operate on a graph that can include parallel edges from and to the same nodes
opentnsim.output.HasOutput, # allow additional output to be stored
),
{}
)
2 Create graph#
2.1 Import FIS graph#
Next we create a network (a graph) along which the vessel can move. For this case we use the Fairway Information System graph, and make the vessels sail from one side of the lock to another side.
# load the processed version from the Fairway Information System graph provided by Rijkswaterstaat
FG = fis.load_network(version="0.3")
#m = create_real_world_graph(FG)
#m
From the above map we select the following origin and destination pair for the vessels
node_A = '8860743'
node_B = '8866727'
2.2 Modify the FIS graph#
We have to check if there are nodes within the lock chamber geometry. This is not supported by OpenTNSim, and we need to manually remove these nodes and merge the edges to a single edge. Let’s first import the lock chamber geometry, which we downloaded using OpenStreetMap (OSM) through overpass turbo (see link).
path = os.getcwd()
lock_geometry = gpd.read_file(os.path.join(path, "data", "lock_chamber.geojson"))
We can plot this geometry into the folium map by reconfiguring the coordinates of the lock chamber’s polygon geometry:
lock_polygon = lock_geometry.geometry.iloc[0]
lock_polygon_transformed = transform(lambda x, y: (y, x), lock_polygon)
lock_coordinates = lock_polygon_transformed.exterior.coords
sub_FG = FG.subgraph(nx.dijkstra_path(FG, node_A, node_B))
m = create_real_world_graph(sub_FG, lat_start = 51.69, lon_start = 4.41, zoom_start = 14)
folium.Polygon(lock_coordinates).add_to(m)
#display
m
Make this Notebook Trusted to load map: File -> Trust Notebook
There are nodes within the lock geometry, which we have to find, merge their edges and remove.
nodes_within_the_lock_chamber = find_nodes_in_a_polygon(lock_polygon)
for node in nodes_within_the_lock_chamber:
merge_two_consecutive_edges_based_on_shared_node(FG,node)
sub_FG = FG.subgraph(nx.dijkstra_path(FG, node_A, node_B))
m = create_real_world_graph(sub_FG, lat_start = 51.69, lon_start = 4.41, zoom_start = 14)
folium.Polygon(lock_coordinates).add_to(m)
#display
m
Make this Notebook Trusted to load map: File -> Trust Notebook
for i,edge in enumerate(sub_FG.edges):
edge_geometry = sub_FG.edges[edge]["geometry"]
edge_geometry_m = transform_geometry(edge_geometry, epsg_out = "EPSG:28992")
edge_geometry_length = edge_geometry_m.length
sub_FG.edges[edge]["length_m"] = edge_geometry_length
2.3 Derive lock information#
First identify at which edge the lock chamber is located:
lock_node_A, lock_node_B = find_edges_in_a_polygon(lock_polygon)[0]
lock_edge = (lock_node_A, lock_node_B)
Next, we need to derive the lock dimensions, which we can do using a bounding box polygon
bounding_rectange_transformed = get_bounding_rectangle(lock_polygon)
bounding_rectange = flip_coordinates(bounding_rectange_transformed)
bounding_rectange_m = transform_geometry(bounding_rectange, epsg_out = "EPSG:28992")
Distances from the gates to the edge’s start and end node
# split the lock edge in three parts
first_part_edge, lock_part_edge, second_part_edge = split_edge_based_on_geometry_along_edge(FG,lock_edge,bounding_rectange)
# determine the length of the different parts
edge_geometries = [first_part_edge,lock_part_edge,second_part_edge]
edge_lenghts = calculate_length_of_splitted_edge_geometries(FG, lock_edge, edge_geometries)
# select the geometries and length of the part of the edges that do not contain the lock chamber itself
lock_edge_geometries = [first_part_edge, second_part_edge]
lock_edge_lengths = [edge_lenghts[0],edge_lenghts[-1]]
# determine the distances of the edge parts
distance_from_start_node_to_lock_doors_A, distance_from_end_node_to_lock_doors_B = determine_the_distances_from_doors_to_edge_nodes(FG, lock_edge_geometries, lock_edge_lengths)
The lock dimensions
# we already calculated the length of the lock chamber
lock_length = edge_lenghts[1]
# we wrote a function to calculate the other dimensions of the lock chamber
_, lock_width, rotation = determine_object_dimensions_and_alignment(bounding_rectange_m)
# as the length also include two mitre lock gates (length of two times half the lock width) and a safety marging, lets say 15 m at both lock doors, the length capacity would be:
lock_length_capacity = np.floor((lock_length - lock_width - 2*15)/10)*10 # ~301.5 m in reality
lock_width_capacity = np.floor(lock_width) # 24.1 m in reality
lock_depth = 6.2
The waiting areas and their distances to the lock doors
# roughly determine the waiting area coordinates using google earth
waiting_area_A_geometry = Point(4.420425,51.696497)
waiting_area_B_geometry = Point(4.395560,51.683439)
# get the closest nodes and edges where the waiting areas are located
node_waiting_area_A = get_closest_node_to_point(FG,waiting_area_A_geometry)
node_waiting_area_B = get_closest_node_to_point(FG,waiting_area_B_geometry)
edge_waiting_area_A = find_closest_edge_to_point(FG,waiting_area_A_geometry)
edge_waiting_area_B = find_closest_edge_to_point(FG,waiting_area_B_geometry)
# get routes to the lock
route_to_lock_edge_from_waiting_area_A = nx.dijkstra_path(FG,node_waiting_area_A,lock_node_A)
route_to_lock_edge_from_waiting_area_B = nx.dijkstra_path(FG,node_waiting_area_B,lock_node_B)
# get the location along this edge at which the waiting area is located
waiting_area_location_on_edge_waiting_area_A = get_closest_location_on_edge_to_point(FG, edge_waiting_area_A, waiting_area_A_geometry)
waiting_area_location_on_edge_waiting_area_B = get_closest_location_on_edge_to_point(FG, edge_waiting_area_B, waiting_area_B_geometry)
# get the splitted edges
edge_waiting_area_A_geometry_splitted = split_edge_based_on_point_along_edge(FG,edge_waiting_area_A,waiting_area_location_on_edge_waiting_area_A)
edge_waiting_area_B_geometry_splitted = split_edge_based_on_point_along_edge(FG,edge_waiting_area_B,waiting_area_location_on_edge_waiting_area_B)
# determine their lengths
edge_lenghts_waiting_area_A = calculate_length_of_splitted_edge_geometries(FG, edge_waiting_area_A, edge_waiting_area_A_geometry_splitted)
edge_lenghts_waiting_area_B = calculate_length_of_splitted_edge_geometries(FG, edge_waiting_area_B, edge_waiting_area_B_geometry_splitted)
# determine distance to node directed to the lock chamber
edge_waiting_area_B_in_route_to_lock = edge_waiting_area_B[0] in route_to_lock_edge_from_waiting_area_B and edge_waiting_area_B[1] in route_to_lock_edge_from_waiting_area_B
distance_lock_doors_B_to_waiting_area_B = 0.0
if edge_waiting_area_B_in_route_to_lock:
distance_lock_doors_B_to_waiting_area_B += np.max(edge_lenghts_waiting_area_B)
remaining_route_to_lock_doors_B = route_to_lock_edge_from_waiting_area_B[1:]
else:
distance_lock_doors_B_to_waiting_area_B += np.min(edge_lenghts_waiting_area_B)
remaining_route_to_lock_doors_B = route_to_lock_edge_from_waiting_area_B
if len(remaining_route_to_lock_doors_B) >= 2:
for edge_start_node, edge_end_node in zip(remaining_route_to_lock_doors_B[:-1],remaining_route_to_lock_doors_B[1:]):
edge_info = FG.edges[(edge_start_node,edge_end_node)]
distance_lock_doors_B_to_waiting_area_B += edge_info["length_m"]
if edge_waiting_area_B != lock_edge:
distance_lock_doors_B_to_waiting_area_B += distance_from_end_node_to_lock_doors_B
else:
distance_lock_doors_B_to_waiting_area_B = np.max(edge_lenghts_waiting_area_B) - distance_from_end_node_to_lock_doors_A - lock_length
edge_waiting_area_A_in_route_to_lock = edge_waiting_area_A[0] in route_to_lock_edge_from_waiting_area_A and edge_waiting_area_A[1] in route_to_lock_edge_from_waiting_area_A
distance_lock_doors_A_to_waiting_area_A = 0.0
if edge_waiting_area_A_in_route_to_lock:
distance_lock_doors_A_to_waiting_area_A += np.max(edge_lenghts_waiting_area_A)
remaining_route_to_lock_doors_A = route_to_lock_edge_from_waiting_area_A[1:]
else:
distance_lock_doors_A_to_waiting_area_A += np.min(edge_lenghts_waiting_area_A)
remaining_route_to_lock_doors_A = route_to_lock_edge_from_waiting_area_A
if len(remaining_route_to_lock_doors_A) >= 2:
for edge_start_node, edge_end_node in zip(remaining_route_to_lock_doors_A[:-1],remaining_route_to_lock_doors_A[1:]):
edge_info = FG.edges[(edge_start_node,edge_end_node)]
distance_lock_doors_A_to_waiting_area_A += edge_info["length_m"]
if edge_waiting_area_A != lock_edge:
distance_lock_doors_A_to_waiting_area_A += distance_from_start_node_to_lock_doors_A
else:
distance_lock_doors_A_to_waiting_area_A = np.max(edge_lenghts_waiting_area_A) - distance_from_end_node_to_lock_doors_B - lock_length
3. Run simulation#
3.1 Set mission and simpy environment with VTS#
def mission(env, vessel):
"""
Method that defines the mission of the vessel.
In this case:
keep moving along the path until its end point is reached
"""
while True:
yield from vessel.move()
if vessel.geometry == nx.get_node_attributes(env.graph, "geometry")[vessel.route[-1]]:
break
# start simpy environment
simulation_start = datetime.datetime(2025, 1, 1, 0, 0, 0)
env = simpy.Environment(initial_time=simulation_start.timestamp())
env.epoch = simulation_start
# add graph to environment
env.graph = FG
# add components important for locking to the environment
env.vessel_traffic_service = vessel_traffic_service_module.VesselTrafficService(graph=sub_FG, crs_m = "EPSG:28992") #Amersfoort / RD New reference system
3.2 Create lock object#
lock = lock_module.IsLockComplex(
env = env,
name = 'Lock',
node_open = lock_node_A,
node_A = lock_node_A,
node_B = lock_node_B,
edge_waiting_area_A = edge_waiting_area_A,
edge_waiting_area_B = edge_waiting_area_B,
distance_lock_doors_A_to_waiting_area_A = distance_lock_doors_A_to_waiting_area_A,
distance_lock_doors_B_to_waiting_area_B = distance_lock_doors_B_to_waiting_area_B,
distance_from_start_node_to_lock_doors_A = distance_from_start_node_to_lock_doors_A,
distance_from_end_node_to_lock_doors_B = distance_from_end_node_to_lock_doors_B,
lock_length = lock_length,
lock_width = lock_width,
lock_depth = lock_depth,
levelling_time = 300,
sailing_distance_to_crossing_point = 300,
doors_opening_time= 300,
doors_closing_time= 300,
speed_reduction_factor_lock_chamber=0.25,
sailing_in_time_gap_through_doors = 240,
sailing_in_speed_sea = 1.5,
sailing_in_speed_canal = 1.5,
sailing_out_time_gap_through_doors = 60,
sailing_time_before_opening_lock_doors = 600,
sailing_time_before_closing_lock_doors = 120,
registration_nodes = [node_A, node_B],
)
3.3 Create vessels#
# create vessels from dict
data_vessel_1 = {
"env": env, # needed for simpy simulation
"name": "Vessel 1", # required by Identifiable
"geometry": env.graph.nodes[node_A]['geometry'], # required by Locatable
"route": nx.dijkstra_path(env.graph, node_A, node_B), # required by Routeable
"v": 4, # required by Movable, 4 m/s to check if the distance is covered in the expected time
"L": 100, # required by VesselProperties, interacts with the lock capacity
"B": 20, # required by VesselProperties
"T": 10, # required by VesselProperties
"type": 'tanker', # required by VesselProperties
"arrival_time": pd.Timestamp('2025-01-01 00:00:00') # required by PassesLockComplex
}
vessel_1 = Vessel(**data_vessel_1)
vessel_1.name = 'Vessel 1'
data_vessel_2 = {
"env": env, # needed for simpy simulation
"name": "Vessel 2", # required by Identifiable
"geometry": env.graph.nodes[node_B]['geometry'], # required by Locatable
"route": nx.dijkstra_path(env.graph, node_B, node_A), # required by Routeable
"v": 4, # required by Movable, 4 m/s to check if the distance is covered in the expected time
"L": 100, # required by VesselProperties, interacts with the lock capacity
"B": 20, # required by VesselProperties
"T": 10, # required by VesselProperties
"type": 'tanker', # required by VesselProperties
"arrival_time": pd.Timestamp('2025-01-01 00:05:00') # required by PassesLockComplex
}
vessel_2 = Vessel(**data_vessel_2)
vessel_2.name = 'Vessel 2'
# start the simulation
env.process(mission(env, vessel_1))
env.process(mission(env, vessel_2))
env.run()
distance_lock_doors_B_to_waiting_area_B
np.float64(1080.102014273376)
# We can plot the time-distance diagram
lock.create_time_distance_plot(
vessels = [vessel_1,vessel_2],
xlimmin = -3000,
xlimmax = 3000,
method = 'Plotly'
)
# load the logbook data into a dataframe
df = pd.DataFrame.from_dict(vessel_1.logbook)
print("'{}' logbook data:".format(vessel_1.name))
print('')
display(df)
'Vessel 1' logbook data:
| Message | Timestamp | Value | Geometry | |
|---|---|---|---|---|
| 0 | Sailing from node 8860743 to node 8862498 start | 2025-01-01 00:00:00.000000 | 0 | POINT (4.43615944214078 51.7022764335403) |
| 1 | Sailing from node 8860743 to node 8862498 stop | 2025-01-01 00:01:59.152925 | 476.611698 | POINT (4.43027504290525 51.7000442261129) |
| 2 | Sailing from node 8862498 to node B34113_A start | 2025-01-01 00:01:59.152925 | 476.611698 | POINT (4.43027504290525 51.7000442261129) |
| 3 | Sailing to waiting area start | 2025-01-01 00:01:59.152925 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.43027504290525 51.7000442261129) |
| 4 | Sailing to waiting area stop | 2025-01-01 00:05:25.556257 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.4206177943222835 51.695704522582766) |
| 5 | Sailing to first lock doors start | 2025-01-01 00:05:25.556257 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.4206177943222835 51.695704522582766) |
| 6 | Sailing to first lock doors stop | 2025-01-01 00:08:44.007755 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.411964025200447 51.691016098663965) |
| 7 | Sailing to position in lock start | 2025-01-01 00:08:44.007755 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.411964025200447 51.691016098663965) |
| 8 | Sailing to position in lock stop | 2025-01-01 00:13:42.486590 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.408601558752343 51.68921281525022) |
| 9 | Levelling start | 2025-01-01 00:18:42.486590 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.408601558752343 51.68921281525022) |
| 10 | Levelling stop | 2025-01-01 00:23:42.486590 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.408601558752343 51.68921281525022) |
| 11 | Sailing to second lock doors start | 2025-01-01 00:28:42.486590 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.408601558752343 51.68921281525022) |
| 12 | Sailing to second lock doors stop | 2025-01-01 00:29:31.082703 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.408054344012046 51.6889190558317) |
| 13 | Sailing to lock complex exit start | 2025-01-01 00:29:31.082703 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.408054344012046 51.6889190558317) |
| 14 | Sailing to lock complex exit stop | 2025-01-01 00:29:38.975008 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.4077088440752465 51.688733575668216) |
| 15 | Sailing from node 8862498 to node B34113_A stop | 2025-01-01 00:29:38.975008 | 476.611698 | POINT (4.4077088440752465 51.688733575668216) |
| 16 | Sailing from node B34113_A to node B34113_B start | 2025-01-01 00:29:38.975008 | 476.611698 | POINT (4.4077088440752465 51.688733575668216) |
| 17 | Sailing from node B34113_A to node B34113_B stop | 2025-01-01 00:29:40.987647 | 484.662252 | POINT (4.407620736969263 51.688686277276325) |
| 18 | Sailing from node B34113_B to node 8868426 start | 2025-01-01 00:29:40.987647 | 484.662252 | POINT (4.407620736969263 51.688686277276325) |
| 19 | Sailing from node B34113_B to node 8868426 stop | 2025-01-01 00:35:13.860823 | 1816.154957 | POINT (4.39253941691783 51.6812485487213) |
| 20 | Sailing from node 8868426 to node 8866727 start | 2025-01-01 00:35:13.860823 | 1816.154957 | POINT (4.39253941691783 51.6812485487213) |
| 21 | Sailing from node 8868426 to node 8866727 stop | 2025-01-01 00:36:57.617019 | 2231.179741 | POINT (4.38801816186906 51.678798010768) |
# load the logbook data into a dataframe
df = pd.DataFrame.from_dict(vessel_2.logbook)
print("'{}' logbook data:".format(vessel_2.name))
print('')
display(df)
'Vessel 2' logbook data:
| Message | Timestamp | Value | Geometry | |
|---|---|---|---|---|
| 0 | Sailing from node 8866727 to node 8868426 start | 2025-01-01 00:05:00.000000 | 0 | POINT (4.38801816186906 51.678798010768) |
| 1 | Sailing from node 8866727 to node 8868426 stop | 2025-01-01 00:06:43.756196 | 415.024785 | POINT (4.39253941691783 51.6812485487213) |
| 2 | Sailing from node 8868426 to node B34113_B start | 2025-01-01 00:06:43.756196 | 415.024785 | POINT (4.39253941691783 51.6812485487213) |
| 3 | Sailing to waiting area start | 2025-01-01 00:06:43.756196 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.39253941691783 51.6812485487213) |
| 4 | Sailing to waiting area stop | 2025-01-01 00:07:48.616506 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.395488924475732 51.6826894201731) |
| 5 | Waiting for lock operation start | 2025-01-01 00:07:48.616506 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.395488924475732 51.6826894201731) |
| 6 | Waiting for lock operation stop | 2025-01-01 00:27:23.164893 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.395488924475732 51.6826894201731) |
| 7 | Sailing from node 8868426 to node B34113_B stop | 2025-01-01 00:30:46.317448 | 1227.635002 | POINT (4.407620736969263 51.688686277276325) |
| 8 | Sailing from node B34113_B to node B34113_A start | 2025-01-01 00:30:46.317448 | 1227.635002 | POINT (4.407620736969263 51.688686277276325) |
| 9 | Sailing from node B34113_B to node B34113_A stop | 2025-01-01 00:30:48.330086 | 1235.685555 | POINT (4.4077088440752465 51.688733575668216) |
| 10 | Sailing from node B34113_A to node 8862498 start | 2025-01-01 00:30:48.330086 | 1235.685555 | POINT (4.4077088440752465 51.688733575668216) |
| 11 | Sailing to first lock doors start | 2025-01-01 00:30:48.330086 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.4077088440752465 51.688733575668216) |
| 12 | Sailing to first lock doors stop | 2025-01-01 00:30:56.222392 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.408054344012046 51.6889190558317) |
| 13 | Sailing to position in lock start | 2025-01-01 00:30:56.222392 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.408054344012046 51.6889190558317) |
| 14 | Sailing to position in lock stop | 2025-01-01 00:35:54.701228 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.411415380487444 51.69072335684665) |
| 15 | Levelling start | 2025-01-01 00:42:00.000000 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.411415380487444 51.69072335684665) |
| 16 | Levelling stop | 2025-01-01 00:47:00.000000 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.411415380487444 51.69072335684665) |
| 17 | Sailing to second lock doors start | 2025-01-01 00:52:00.000000 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.411415380487444 51.69072335684665) |
| 18 | Sailing to second lock doors stop | 2025-01-01 00:52:48.596112 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.411964025200447 51.691016098663965) |
| 19 | Sailing to lock complex exit start | 2025-01-01 00:52:48.596112 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.411964025200447 51.691016098663965) |
| 20 | Sailing to lock complex exit stop | 2025-01-01 00:59:33.450943 | {'origin': '', 'destination': '', 'route': [],... | POINT (4.43027504290525 51.7000442261129) |
| 21 | Sailing from node B34113_A to node 8862498 stop | 2025-01-01 00:59:33.450943 | 1235.685555 | POINT (4.43027504290525 51.7000442261129) |
| 22 | Sailing from node 8862498 to node 8860743 start | 2025-01-01 00:59:33.450943 | 1235.685555 | POINT (4.43027504290525 51.7000442261129) |
| 23 | Sailing from node 8862498 to node 8860743 stop | 2025-01-01 01:01:32.603867 | 1712.297253 | POINT (4.43615944214078 51.7022764335403) |
pd.Timedelta(minutes=31,seconds=10)-pd.Timedelta(minutes=19,seconds=49)-pd.Timedelta(minutes=6,seconds=45)
Timedelta('0 days 00:04:36')
