In-depth energy module behaviour (Procedural)#
In this notebook, we set up a graph with a single edge to demonstrate some basic functionality of the Energy module by directly using procedural functions and simple data structures.
0. Import libraries#
# package(s) used for creating and geo-locating the graph
import networkx as nx
import pyproj
from pyproj import Geod
import shapely.geometry
from shapely.geometry import Point
import pathlib
# package(s) related to the simulation
import datetime
import opentnsim
from opentnsim.energy import algorithms, calculations
# package(s) needed for inspecting the output
import numpy as np
import pandas as pd
# package(s) needed for plotting
import matplotlib.pyplot as plt
print(f"This notebook is executed with OpenTNSim version {opentnsim.__version__}")
This notebook is executed with OpenTNSim version 0.1.dev1+gbe28de4fe
1. Define helper functions#
We define a set of functions that encapsulate the energy calculation logic. Instead of a Vessel class, we use a dictionary (vessel_data) to store and pass the vessel’s state and properties between these functions.
def create_vessel_data(**kwargs):
"""Creates a dictionary to hold all vessel properties and states."""
vessel_data = {
# TODO: Check why we need all these properties. Some seem to be unrelated to vessels (e.g. g, rho)
'nu': 1 * 10 ** (-6),
'rho': 1000,
'g': 9.81,
'x': 2,
'D_s': 1.4,
'eta_o': 0.4,
'eta_r': 1.00,
'eta_t': 0.98,
'eta_g': 0.96,
'c_stern': 0,
'C_BB': 0.2,
'C_B': 0.85,
'one_k2': 2.5,
'current_year': 2024,
'L': 100,
'B': 20,
'T': 7,
'bulbous_bow': True,
'P_installed': 5000,
'P_hotel_perc': 0.05,
'karpov_correction': True,
'L_w': 3,
}
vessel_data.update(kwargs)
vessel_data['P_hotel'] = vessel_data['P_hotel_perc'] * vessel_data['P_installed']
age = calculations.sample_engine_age(vessel_data['L_w'])
vessel_data['C_year'] = vessel_data['current_year'] - age
props = calculations.calculate_properties(
C_B=vessel_data['C_B'], L=vessel_data['L'], B=vessel_data['B'], T=vessel_data['T'],
bulbous_bow=vessel_data['bulbous_bow'], C_BB=vessel_data['C_BB']
)
vessel_data.update(props._asdict())
return vessel_data
pd.DataFrame([pd.Series(create_vessel_data())]).T
| 0 | |
|---|---|
| nu | 0.000001 |
| rho | 1000 |
| g | 9.81 |
| x | 2 |
| D_s | 1.4 |
| eta_o | 0.4 |
| eta_r | 1.0 |
| eta_t | 0.98 |
| eta_g | 0.96 |
| c_stern | 0 |
| C_BB | 0.2 |
| C_B | 0.85 |
| one_k2 | 2.5 |
| current_year | 2024 |
| L | 100 |
| B | 20 |
| T | 7 |
| bulbous_bow | True |
| P_installed | 5000 |
| P_hotel_perc | 0.05 |
| karpov_correction | True |
| L_w | 3 |
| P_hotel | 250.0 |
| C_year | 2000 |
| C_M | 0.996013 |
| C_WP | 0.9 |
| C_P | 0.853403 |
| delta | 11900.0 |
| lcb | 3.056017 |
| L_R | 34.472673 |
| A_T | 14.0 |
| A_BT | 27.88835 |
| S | 3019.327417 |
| S_APP | 150.966371 |
| S_B | 2000 |
| T_F | 7 |
| h_B | 1.4 |
def calculate_total_resistance(vessel_data, v, h_0):
"""Calculates all resistance components and updates the vessel dictionary."""
res_fric = calculations.calculate_frictional_resistance(
v=v, h_0=h_0, L=vessel_data['L'], nu=vessel_data['nu'], T=vessel_data['T'],
S=vessel_data['S'], S_B=vessel_data['S_B'], rho=vessel_data['rho'])
fric_names = ['R_f', 'C_f', 'R_e', 'Cf_deep', 'Cf_shallow', 'Cf_0', 'Cf_Katsui', 'V_B', 'D', 'a']
vessel_data.update(dict(zip(fric_names, res_fric)))
res_viscous = calculations.calculate_viscous_resistance(
c_stern=vessel_data['c_stern'], B=vessel_data['B'], L=vessel_data['L'], T=vessel_data['T'],
L_R=vessel_data['L_R'], C_P=vessel_data['C_P'], R_f=vessel_data['R_f'], delta=vessel_data['delta'])
vessel_data.update({'c_14': res_viscous[0], 'one_k1': res_viscous[1], 'R_f_one_k1': res_viscous[2]})
vessel_data['R_APP'] = calculations.calculate_appendage_resistance(
v=v, rho=vessel_data['rho'], S_APP=vessel_data['S_APP'],
one_k2=vessel_data['one_k2'], C_f=vessel_data['C_f'])
res_karpov = calculations.karpov(v=v, h_0=h_0, g=vessel_data['g'], T=vessel_data['T'])
vessel_data.update({'F_rh': res_karpov[0], 'V_2': res_karpov[1], 'alpha_xx': res_karpov[2]})
v_wave_res = vessel_data['V_2'] if vessel_data['karpov_correction'] else v
res_wave = calculations.calculate_wave_resistance(
V_2=v_wave_res, h_0=h_0, g=vessel_data['g'], T=vessel_data['T'], L=vessel_data['L'], B=vessel_data['B'],
C_P=vessel_data['C_P'], C_WP=vessel_data['C_WP'], lcb=vessel_data['lcb'], L_R=vessel_data['L_R'],
A_T=vessel_data['A_T'], C_M=vessel_data['C_M'], delta=vessel_data['delta'], rho=vessel_data['rho'])
wave_names = ['F_rL', 'i_E', 'c_1', 'c_2', 'c_5', 'c_7', 'c_15', 'c_16', 'lmbda', 'm_1', 'm_2', 'R_W']
vessel_data.update(dict(zip(wave_names, res_wave)))
res_res = calculations.calculate_residual_resistance(
V_2=v_wave_res, g=vessel_data['g'], A_T=vessel_data['A_T'], B=vessel_data['B'], C_WP=vessel_data['C_WP'],
rho=vessel_data['rho'], T=vessel_data['T'], L=vessel_data['L'], C_B=vessel_data['C_B'], S=vessel_data['S'],
T_F=vessel_data['T_F'], h_B=vessel_data['h_B'], A_BT=vessel_data['A_BT'], bulbous_bow=vessel_data['bulbous_bow'])
res_names = ['F_nT', 'c_6', 'R_TR', 'c_4', 'c_2_res', 'C_A', 'R_A', 'F_ni', 'P_B', 'R_B', 'R_res']
vessel_data.update(dict(zip(res_names, res_res)))
vessel_data['R_tot'] = (vessel_data['R_f'] * vessel_data['one_k1'] + vessel_data['R_APP'] +
vessel_data['R_W'] + vessel_data['R_TR'] + vessel_data['R_A'] + vessel_data['R_B'])
def calculate_total_power_required(vessel_data, v):
"""Calculates all power components and updates the vessel dictionary."""
power_vals = calculations.calculate_total_power_required(
v=v, h_0=vessel_data['h_0'], R_tot=vessel_data['R_tot'], F_rL=vessel_data['F_rL'], x=vessel_data['x'],
C_B=vessel_data['C_B'], delta=vessel_data['delta'], D_s=vessel_data['D_s'], eta_o=vessel_data['eta_o'],
eta_r=vessel_data['eta_r'], eta_t=vessel_data['eta_t'], eta_g=vessel_data['eta_g'],
P_hotel=vessel_data['P_hotel'], P_installed=vessel_data['P_installed'])
power_names = ['P_e', 'dw', 'w', 't', 'eta_h', 'P_d', 'P_b', 'P_propulsion',
'P_tot', 'P_given', 'P_partial']
vessel_data.update(dict(zip(power_names, power_vals)))
2. Create graph#
Next, we create a network (a graph) along which the vessel can move. In this case, we create a single edge of exactly 100 km.
geod = Geod(ellps="WGS84")
lon0, lat0 = 0, 0
lon1, lat1, _ = geod.fwd(lon0, lat0, 90, 100000)
coords = {"0": (lon0, lat0), "1": (lon1, lat1)}
FG = nx.DiGraph()
for name, coord in coords.items():
FG.add_node(name, geometry=Point(coord[0], coord[1]))
FG.add_edge("0", "1", weight=1, Info={'GeneralDepth': 10})
FG.add_edge("1", "0", weight=1, Info={'GeneralDepth': 10})
3. Run Calculation#
def run_calculation(vessel_params, v, distance, h_0):
"""Runs a single calculation for a given velocity and returns a results dictionary."""
vessel_data = create_vessel_data(**vessel_params, v=v)
vessel_data['h_0'] = h_0
calculate_total_resistance(vessel_data, v, h_0)
calculate_total_power_required(vessel_data, v)
duration = distance / v
total_energy = vessel_data['P_tot'] * duration / 3600 # kWh
# Prepare results
result = {
'v': v,
'P_tot': vessel_data['P_tot'],
'total_energy': total_energy,
'R_tot': vessel_data['R_tot'],
'R_f_one_k1': vessel_data['R_f_one_k1'],
'R_APP': vessel_data['R_APP'],
'R_W': vessel_data['R_W'],
'R_res': vessel_data['R_res']
}
return result
4.1 Show the effects of vessel velocity on resistance, power and energy#
We run the calculation for a range of velocities.
vessel_params = {
'L': 135, 'B': 11.75, 'T': 2.75,
'P_installed': 1750, 'L_w': 3, 'C_year': 1990,
'karpov_correction': True, 'bulbous_bow': False,
'P_hotel_perc': 0.05
}
velocity_range = np.arange(0.1, 6.0, 0.1)
results = []
distance_m = 100000
water_depth_m = 10
for v_set in velocity_range:
result = run_calculation(vessel_params, v_set, distance_m, water_depth_m)
results.append(result)
results_df = pd.DataFrame(results)
fig, axes = plt.subplots(1, 3, figsize=(12, 4))
# Plot resistance components
axes[0].plot(results_df['v'] * 3.6, results_df['R_tot'], '-', c='blue', label='$R_T$')
axes[0].plot(results_df['v'] * 3.6, results_df['R_f_one_k1'], '-', c='orange', label='$R_f (1+k_1)$')
axes[0].plot(results_df['v'] * 3.6, results_df['R_APP'], '-', c='green', label='$R_{app}$')
axes[0].plot(results_df['v'] * 3.6, results_df['R_W'], '--', c='red', label='$R_W$')
axes[0].plot(results_df['v'] * 3.6, results_df['R_res'], ':', c='magenta', label='$R_{res}$')
axes[0].set_xlabel('v [km/h]')
axes[0].set_ylabel('Total resistance [kN]')
axes[0].set_title('Total resistance vs. speed', fontsize=10)
axes[0].legend(loc='upper left')
axes[0].grid(True)
# Plot total power
axes[1].plot(results_df['v'] * 3.6, results_df['P_tot'], '-o', c='blue', markersize=3)
axes[1].set_xlabel('v [km/h]')
axes[1].set_ylabel('Total power [kW]')
axes[1].set_title('Total power vs. speed', fontsize=10)
axes[1].grid(True)
# Plot total energy
axes[2].plot(results_df['v'] * 3.6, results_df['total_energy'], '-o', c='blue', markersize=3)
axes[2].set_xlabel('v [km/h]')
axes[2].set_ylabel('Total energy [kWh]')
axes[2].set_title('Total energy vs. speed', fontsize=10)
axes[2].grid(True)
fig.suptitle(f"Vessel: L={vessel_params['L']} m, B={vessel_params['B']} m, T={vessel_params['T']} m; Water depth={water_depth_m} m", fontsize=12)
fig.tight_layout(rect=[0, 0, 1, 0.96])
plt.show()

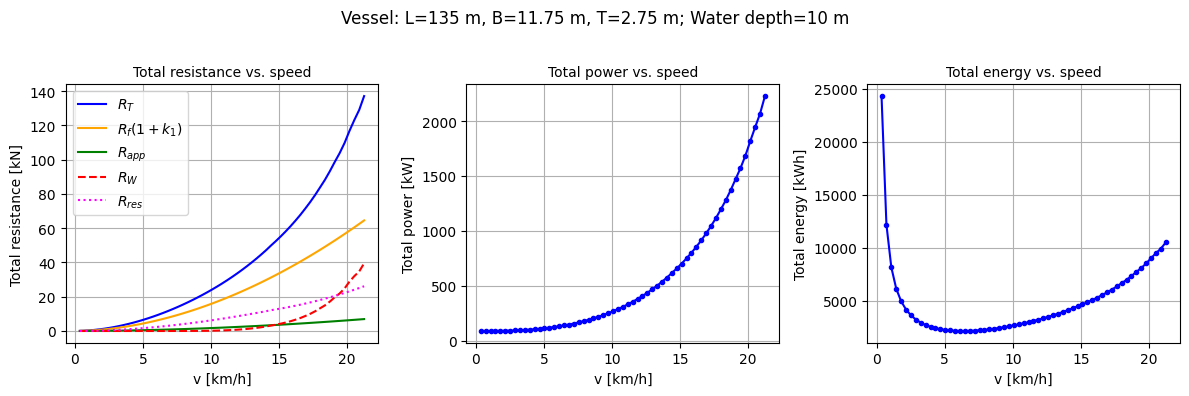

Panel 1 in the figure above corresponds to Part IV - Figure 5.4 in Van Koningsveld et al (2023), https://doi.org/10.5074/T.2021.004. Panel 2 shows how the R_tot from Panel 1 is converted to P_tot, multiplying with v and using various efficiency factors. Panel 3 shows the total energy that is required to pass the 100 km long edge. This total energy is derived by multiplying the P_tot with the time it takes to pass the edge. For very low v’s the R_tot is low, but it also takes long to pass the edge. For high v’s the R_tot escalates, but the time to pass the edge reduces.
